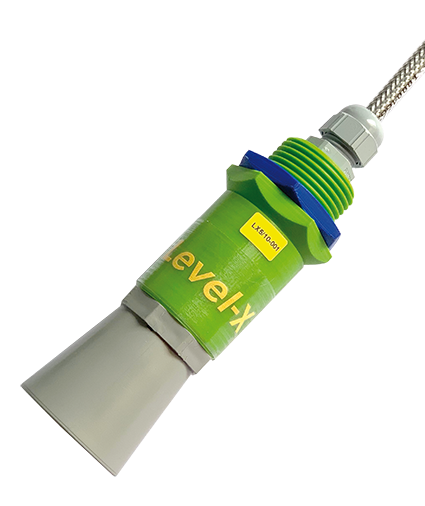

IoT Level sensor

Ultrasonic sensor for measuring open flumes and rainwater diverters.
Level-X is compatible with all the data loggers of the Aqualog line and can be perfectly integrated with the Overland and Aquaworks web platforms.

Level-X is the new generation of FAST sensors and represents an innovative solution for permanent diagnostics in the field. It communicates in real time with corporate SCADA centres and IoT technologies.

  • Digital technology
  • Measurement range 5 - 10 m
  • Resolution 1 mm
  • Environmental conditions -40°/+65°



APPLICATIONS

This high performance measurement sensor can be used to:

  • calculate the capacity of Venturi and Parshall open flumes and weir boxes of the Basin and Thomson type
  • calculate the level/capacity for small open rainwater diverters
  • calculate the capacity of sources with weir boxes of the Basin type or of other shapes and sizes
Designed and assembled in Italy
Download brochure for the integrated service
Power

5 years

Certification

CE

Environmental Conditions

-40° + 65°

Case

IP 68

Datasheet



MEASUREMENT RANGE

0-5 mt Dead band 0-20 cm
0-10 mt Dead band 0-50 cm

RANGE OF
THE ULTRASONIC SIGNAL

< -/+ 6°

RESOLUTION

1 mm

PRECISION

< 1% of measurement

TEMPERATURE DRIFT

Compensated temperature measurement with internal sensor

ENVIRONMENTAL CONDITIONS

-40° + 65°

CASE

IP68

CERTIFICATION

 CE

BATTERY POWER

5 years

RODENT-PROOF CABLE
