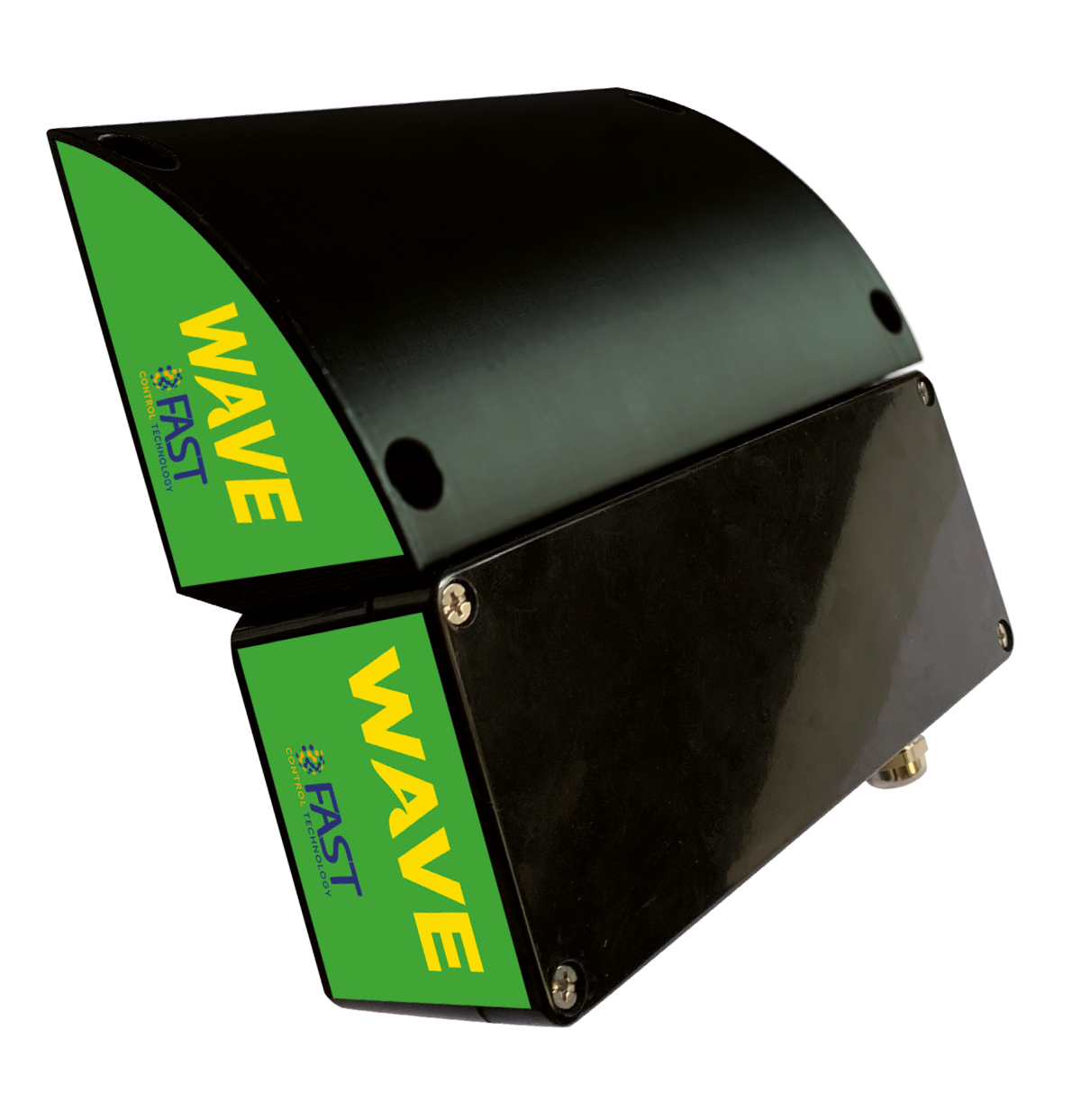

Overflow and spillage sensor

Variable frequency capacitive sensor for de- tection of overflow or level of water.
Wave is compatible with the data loggers of the Aqualog PQ, PQ Evo, AW, T-CNT and Moni- tor line and can be perfectly integrated with the Aquaworks and Overland web platforms.
It is specially designed to detect even the slight- est leaks.



FUNCTIONS

  • Overflow detection for rainwater diverters or other hydraulic structures for conveying/draining rainwater. The overflow event is recorded on the RTU with Time Stamp at the start and end of overflow.
  • Level switch to detect when a threshold is exceeded in the context of water/drainage.
  • Can be used to calculate the overflow rate based on the Level (Level-X) for Venturi and Parshall open flumes and weir boxes of the Bazin and Thomson type or of other shapes and sizes.
Designed and assembled in Italy
Power

Self-powered version or with external power supply

Certification

CE

Environmental Conditions

-30° + 70°

Case

IP 68

Datasheet



SIGNALLING OF OVERFLOW/LEVEL STATUS

With digital signal

SIGNAL UPDATING FREQUENCY

Standard 30 sec. (programmable)

CONNECTION

Compatible with all the RTUs of the AQUALOG series

ENVIRONMENTAL CONDITIONS

-30° + 70°

CASE

IP 68

CERTIFICATION

CE

POWER SUPPLY

Self-powered version or with AQUALOG series RTU external power supply

RODENT-PROOF CABLE
