Thanks to this device manage machines and plants spread over the territories becomes very simple.

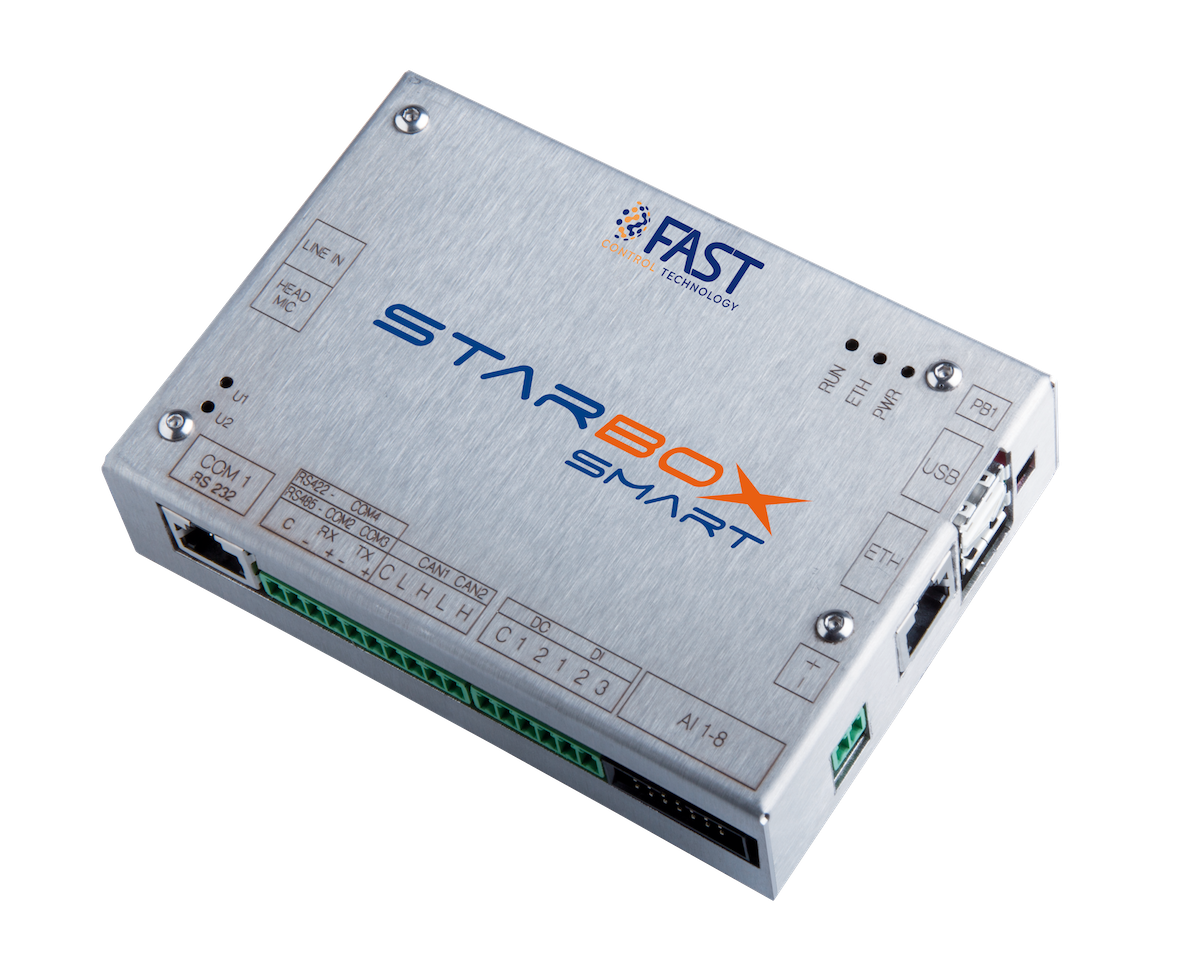

Starbox Smart is the GATEWAY + industrial router on Linux platform specialized in remote monitoring via Web. Thanks to this device manage machines and plants spread over the territories becomes very simple.

Designed and assembled in Italy
Download brochure for the integrated service
Power

10 - 30 V DC

Certification

C

Environmental Conditions

-20°C + 70°C

Datasheet



COMMUNICATION PORTS

1 RS232
2 RS485 (configurable ad 1 RS422 port)
1 Ethernet 10/100 Mb/s
2 CANBUS
2 USB

DIGITAL INPUTS

3 DI 10-30 V DC optoisolated and with protection ESD  15 KV

DIGITAL OUTPUTS

2 DO 10-30 V DC optoisolated and with protection ESD  15 KV

ANALOG INPUTS

8 AI 12 bit 0-10 V DC

EXPANDIBILITY

up to 160 DI, 64 DO, 32 AI, 16 AO
with MODBUS RS232 / RS485 / RS422 / ETHERNET / CANBUS

POWER SUPPLY

10 - 30 V DC

ENVIRONMENTAL CONDITIONS

-20°C  + 70°C

CERTIFICATION

 CE
Functionalities























Industrial Gateway/router

Secure and confidential communications based on TCP/IP protocols on VPN Tunnel

Virtualization of local ethernet and serial communications

Protocols supported MODBUS RTU/TCP, OMRON, SIEMENS S7, MBUS, DLMS, IEC 60870

Generation of alarms and events

Remote real-time monitoring using browser Web

RTU/Data logger with historical data recording

Connection to centralized supervision SCADA system and/or Web portal

Control logic implementation using ladder logic on board







































































































































































































































PORTE DI COMUNICAZIONE

1 RS232 2 RS485 (configurabili come 1 porta RS422) 1 Ethernet 10/100 Mb/s 2 CANBUS 2 USB

INGRESSI DIGITALI

3 DI 10-30 V DC optoisolati e con protezione ESD  15 KV

USCITE DIGITALI

2 DO 10-30 V DC optoisolati e con protezione ESD  15 KV

INGRESSI ANALOGICI

8 AI 12 bit 0-10 V DC

ESPANDIBILITÀ

fino a 160 DI, 64 DO, 32 AI, 16 AO con MODBUS RS232 / RS485 / RS422 / ETHERNET / CANBUS

ALIMENTAZIONE

1 seriale RS485 per connessione a strumenti locali
1 porta USB (opzionale)
1 porta Bluetooth (opzionale)

CERTIFICAZIONE

CE

CASE

IP68
