Lo strumento che consente di gestire il processo in modo semplice ed intuitivo.

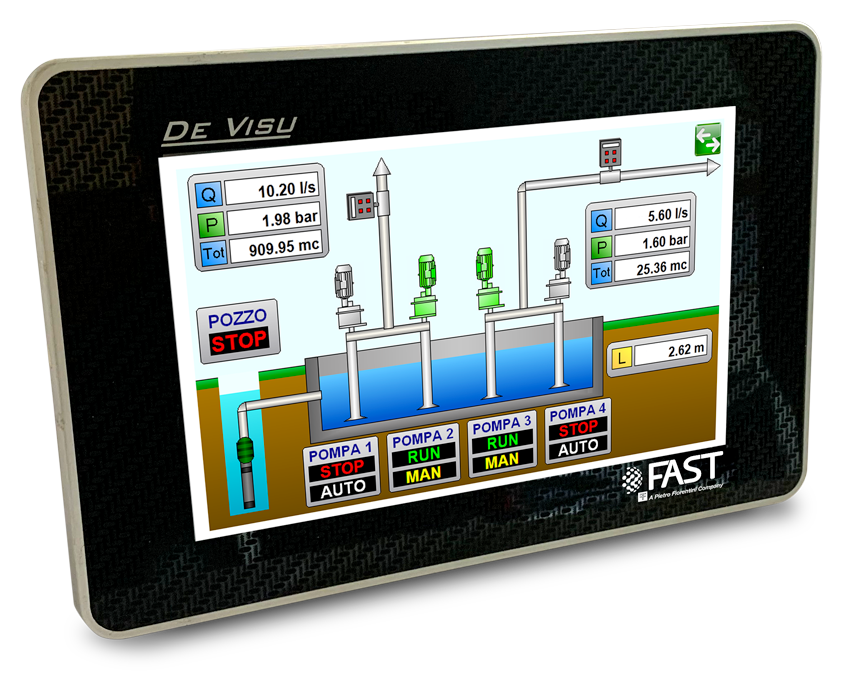

AQUALOG De Visu è lo strumento che consente di gestire il processo in modo semplice ed intuitivo. Grazie all’interfaccia grafica e il display touchscreen, è possibile monitorare e controllare la situazione presente sull’impianto modificando parametri di funzionamento ed inviando comandi al processo.

  • Automazione di impianti idrici grazie al LOGIC LADDER LANGUAGE installato a bordo
  • Integrabile in qualsiasi rete pubblica o privata grazie all’ampia gamma di comunicazioni locali e remote
  • Browser per visualizzare le informazioni in modalità Web
  • Supporto operativo agli addetti grazie all’interfaccia grafica che evidenzia il processo sottolineandone le fasi più importanti
  • Consente la rapida valutazione delle situazioni critiche
Disegnato e assemblato in Italia
Certificazione

CE

Condizioni ambientali

-20°C + 70°C

Case

IP 20

Caratteristiche tecniche



DISPLAY

7’’ TouchScreen
Resolution: 800 x 480
LED backlight
Brightness: 240 cd/mq
Max Contrast: 5001
Viewing angle at contrast ratio CR>5: ± 70H e ± 70V Typical response time: 15 msec

COMMUNICATION PORTS

1 RS232

2 RS485 (configurable as 1 RS422 port)

1 Ethernet 10/100 Mb/s

2 CANBUS 2 USB

POWER SUPPLY

0 - 30 V DC

CONSUMPTION

2 - 4 Watt (max consumption 10 Watt)

ENVIRONMENTAL CONDITIONS

-20°C + 70°C

RTC CLOCK

YES

MEMORY

256 MB FLASH / 128 MB RAM

MEMORY EXPANSION

micro SD CARD / USB

DIGITAL INPUTS

3 DI 10-30 V DC optoisolated and with protection ESD ± 15 KV

DIGITAL OUTPUTS

2 DO 10-30 V DC optoisolated and with protection ESD ± 15 KV

ANALOGIC INPUTS

8 AI 12 bit 0-10 V DC (4-20 mA optional)

EXPANDIBILITY

up to 160 DI, 64 DO, 32 AI, 16 AO
with MODBUS RS232 / RS485 / RS422 / ETHERNET / CANBUS

CASE

IP 20

CERTIFICATION

CE



Funzioni



ALARMS

Signalling and managing of alarms and events generated by threshol overcoming / reaching of both physical and logical states. Messages service for the alarms notification.

WEB FACILITIES

WEB portal with parameter configuration and view of: REAL-TIME, ALARMS, TRENDS

MESSAGES

SMS / E-MAIL

LOCAL COMMUNICATIONS: Protocols

On RS232 / 485 port: MODBUS RTU, DLMS, OMRON FINS, IEC 62056-21
ETHERNET: TCP/IP, MODBUS TCP, SNMP
CANBUS: CAN, CAN OPEN

REMOTE COMMUNICATIONS

TRANSMISSION MEAN: GSM / GPRS / SMS / ADSL / PPSTN / UMTS / WI-FI / F.O. for wired networks / VPN / RADIO MODEM

PROTOCOLS and STANDARDS FOR REMOTE COMMUNICATIONS

MODBUS RTU / SNMP / MODBUS TCP / IP / DLMS / IEC 62056-21 COMMUNICATION MODE: REAL-TIME / BATCH / FILE TRANSFER / FTP / OPC (by optional software)

SUPERVISION

Base Time Acquisition: 1"

Base Time Storage: 1’ – 1 h
Max. Acquisition Variables Num.: 1000

Stored Samples Max Num.: 6000000
Sample processing: instantaneous, min, max, medium

DATA ACQUISTION

GPRS/3G/4G with external power supply or LoRaWAN, NB-IoT, radio modem

COUNTERS

Max Nr. 3 - Range: 32 bit
Conversion into engineering units
Associable to the time derivative for calculation of flow

AUTOMATION

PLC EMBEDDED con LADDER LOGIC STANDARD IEC 61131-3

CONFIGURATION

FROM PC USING RAINBOW CONFIGURATOR

OPC

COMPLIANT (by OPC SERVER)

INTEGRATION WITH AQUAWORKS, OVERLAND Advanced and PLANT VIEW SCADA

DIRECT BY WIZARD

USER APPLICATION

By LADDER languages / C / C++ in LINUX platform

OPERATIVE SYSTEM

LINUX EMBEDDED
